Pe10g2bpi cx4

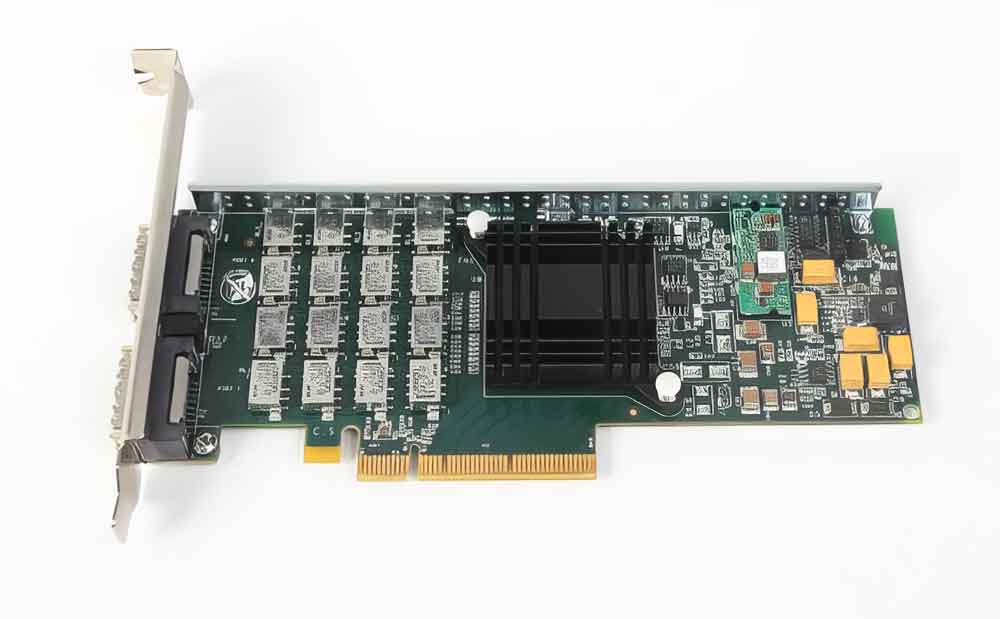

ET/10GigFailover CX4 (PCIe)

Two 10 Gigabit Ethernet Copper Ports, CX4, with Hardware Failover/Bypass

The ET/10GigFailover is built on Intel\'s 82598 Gigabit technology designed to spread interrupts across multicore CPU systems. The hardware Failover/Bypass function allows systems incorporating the ET/10GigFailover to eliminate single point of failure concerns by bypassing the system in the event of a power down or software lockup or failure. Additional features allow a system with the ET/10Gigfailover to be temporarily taken offline, allowing for safe upgrades or maintenance even from a remote location. A functional description of the bypass function can be found here.


  • Silicom Part# PE10G2BPi-CX4
  • Intel's 82598 controller
  • Can act as 2 port card or bypass card
  • Two integrated PHYs for 10 Gb/s full-duplex operation
  • Programmable Bypass - during power off or software

  • PCI-Express 8x Base Specification Revision 1.1
  • Host offloading options - TCP/IP/UDP checksum,
    TCP segmentation and advanced packet filtering

  • Two CX4 Connectors

Software Support

This card can be used as a plug in solution with ET/BWMGR appliances or as a standalone solution with a software bypass driver. If you will not be using the card with an ET/BWMGR appliance or CD appliance, you must specify in the comments field that you need the software as its not normally included.


  • Low profile PCI form factor
    (Low Profile Brackets on request with order)

  • Length, 6.687 in
  • Height, 2.626 in
Out of Stock:


Configured Price
