R2400 cp

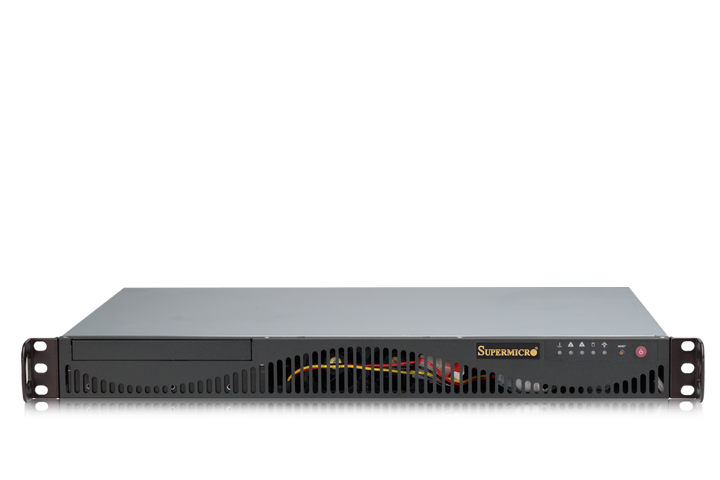

ET/R2400 MultiCore Appliance

The ET/R2400 is a full-featured bandwidth management appliance capable of managing high levels of traffic with substantial rulesets. This unit can control 1000s of users/systems using the most sophisticated bandwidth management technology. The base system includes a 10Mb/s license with a basic processor and can be upgraded to a quad-core super powerhouse capable of managing multiple gigabit networks.

Hardware Features

• Small Footprint 1U Chassis

• i3/E3 CPU

• IPMI Remote Management and Reboot

• Recommended up to 200Mb/s of Traffic

• 4-16GB Ram

• 2 Gigabit onboard Ethernet ports

• Optional Dual or Quad Port Bypass

• Standard SVGA and Keyboard Inputs


Dimensions

16\" X 14\" X 1.7 (1U) 25lbs (Dim Weight)

Compliance

• CE


• UL


• FCC Class A


• ROHS Compliant


Software Features

• Based on Freebsd O/S

• Incremental Licensing from 10Mb/s to 1Gb/s

• Complete HTML Graphical Management Interface

• Backup Utility to USB Drive (bootable backup)

• Transparent Bridging (like an ethernet switch)

• Can Manage Bandwidth for 1000\'s of Hosts, Networks or Traffic Types

• Control Bandwidth by MAC or IP address or Protocol

• Special Filters for p2p, HTTP header and URLs

• Integrated Graphical Analysis of Traffic

• Traffic Priorization

• Integrated Firewalling

• Integrate Real Time Traffic Monitor

• Full Featured Bandwidth Management Capabilities

• Allow Customers/Users to View their Traffic Graphs

• Statistics stored in RRD and mySQL DBs

• See Complete Software Description


Warranty and Support

• 6 months Parts Warranty

• Installation Support (30 days included)

• System/Software Support (paid Update and Support Subscription)



  • Recovery USB Drive Included with paid Support Subscription

  • Unlimited Web Ticket System
